Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:
2214658-ETL (Grove GMK 5160 )
2214659-ETL (Grove GMK 5160 )
2219779-ETL (Grove GMK 5160 )
2315712-ETL (Grove GMK 5160 )
2315714-ETL (Grove GMK 5160 )
2315327-ETL (Grove GMK 5160 )
2316034-ETL (Grove GMK 5160 )
2316036-ETL (Grove GMK 5160 )
2219694-ETL (Grove GMK 5160 )

Also known as:
0117137, 117137, 00117137, 000117137
Parts for Grove GMK 4080-3, Figure 2219694-ETL:

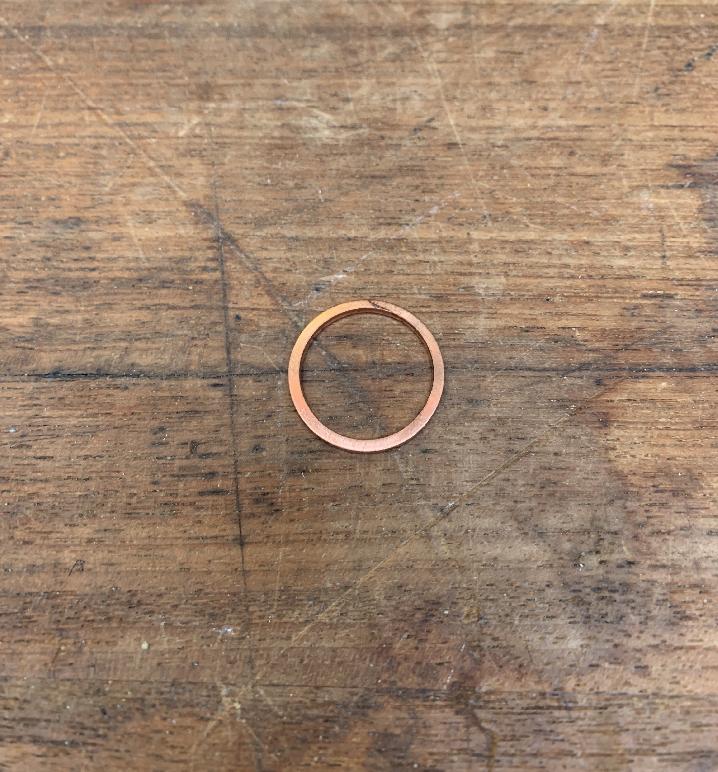

Part Number 0117137: SEALING RING
Pos nr Part number Description Weight in kg
1 2309026 AXLE HOUSING
2 1925785 SCREW PLUG 0.08
3 1925343 SEALING RING 0.005
4 1371216 SCREW PLUG 0.23
5 1371208 SEALING RING 0.005
6 0117131 SEALING RING 0.005
7 1925788 AIR BLEEDER 0.05
9 2309020 FLANGE
10 0437306 HEXAGON SOCKET HEAD CAP SCREW 0.02
11 2309022 COVER 10.26
12 2309021 O-RING 0.025
13 0437182 HEXAGON SCREW 0.120
14 1925719 COVER
16 2309027 DIFFERENTIAL HOUSING 15.800
17 1925722 THRUST WASHER 0.05
18 1925723 THRUST WASHER 0.070
19 1925724 DIFFERENTIAL SIDE GEAR 0.9
20 1925725 DIFFERENTIAL BEVEL GEAR 0.66
21 1925726 DIFFERENTIAL SPIDER 1.372
22 1925727 BEARING BUSH 0.075
23 1925349 TAPERED ROLLER BEARING 1.37
24 2309029 ADJUSTING RING 0.730
25 0118438 HEXAGON SOCKET HEAD CAP SCREW 0.04
26 2309030 HEXAGON SOCKET HEAD CAP SCREW 0.005
28 1684143 HEXAGON SCREW 0.06
29 1925729 BEARING BUSH 0.02
30 2309032 SLIDING SLEEVE 0.62
31 2309033 SHIFT FORK
32 2309034 PISTON 0.13
33 2309035 BACK-UP WASHER 0.010
34 2212311 O-RING 0.005
35 2309038 O-RING 0.005
36 1925786 PRESSURE SPRING 0.03
37 2309055 HEXAGON SCREW 0.02
38 2309039 CYLINDER 0.26
39 1684575 PRESSURE SWITCH 0.300
40 0117137 SEALING RING 0.005
41 1925734 PINION AND RING GEAR 0.001
42 2315020 SHAFT SEAL
43 1922196 RETAINING RING
44 0433890 TAPERED ROLLER BEARING 3.020
45 0434651 TAPERED ROLLER BEARING 2
46 1371192 SPACER RING 0.04
47 1371213 SPACER WASHER 0.17
48 2309040 DRIVE FLANGE
49 1684119 DRIVE-IN NUT 0.420
50 2257786 HEXAGON SCREW 0.08
51 2309049 SHAFT 5.72
52 2309050 SHAFT 5.72
53 0434575 GROOVED BALL BEARING 1.085
54 2252487 BACK-UP WASHER 0.06
55 1207981 CIRCLIP
56 2309048 ROTARY SHAFT SEAL 0.055
57 1069223 O-RING 0.1
58 2309023 O-RING, 108 X 3 0.005
59 2309036 ROD 0.29
60 2309037 THREADED BUSH 0.090
61 2309051 RING
62 0028503 CIRCLIP 0.095
63 2309054 O-RING 0.005
64 1686701 WASHER 0.005
