Grove 3057491

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
3057491, 03057491, 003057491

Parts for Grove GMK 4075, Figure 3057456-ETL:

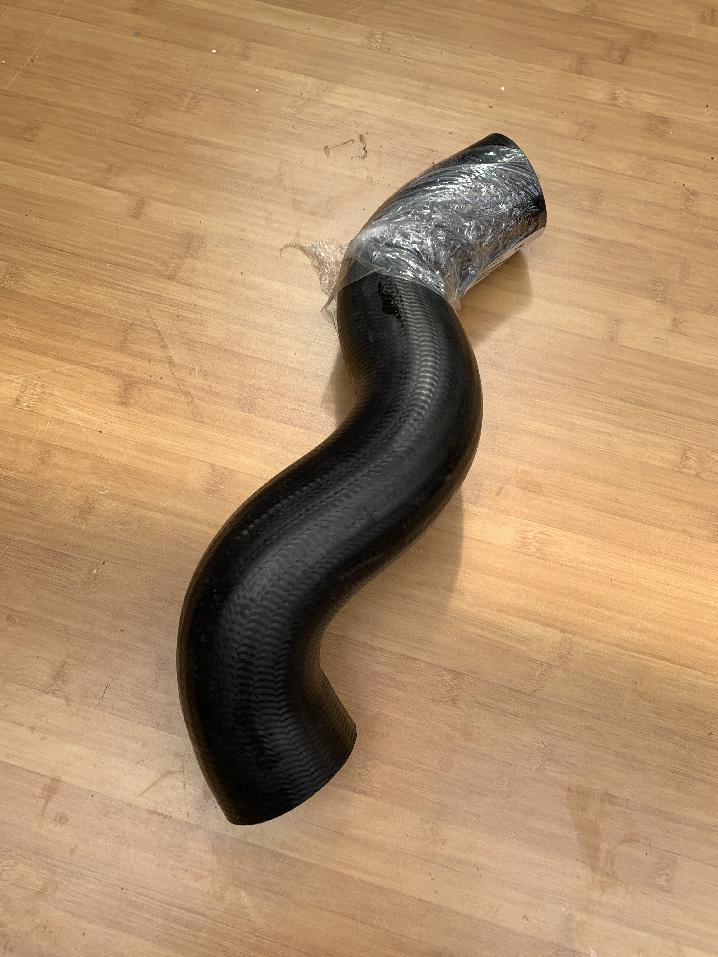

Part Number 3057491: HOSE

Pos nr	Part number	Description	Weight in kg
1	3317858	WATER- /CHARGE-AIR RADIATOR
2	3316228	LOCK	0.05
2	2315685	FLUID RESERVOIR	6
2	3316229	TRANSMITTER FOR COOLING WATER LEVEL INDICATOR	0.28
2	3316230	BOLT
2	3316231	SUPPORT
3	3010587	MOUNTING PIECE	0.001
5	2211427	THREADED COUPLING	0.001
11	3057488	COOLING WATER PIPE	3
12	3057489	COOLING-WATER PIPE 2	2.1
13	3057490	COOLING-WATER PIPE 3	0.704
14	1147548	HOSE
15	3057491	HOSE	1.220
16	1369357	HOSE (METER WARE)
17	3057492	GRATE	18.6
20	1682493	COCK	3
21	2256294	CONNECTION NOZZLE
29	2312119	HOSE
30	2312089	SHAPED HOSE	0.001
31	2256292	HOSE L 650
32	2316876	HOSE (METER WARE)	0.4
33	1207350	HOSE 10 X 3,5 (PER METER)	0.067
39	2219945	RUBBER EDGE PROTECTION (PER METER)	0.34
42	3320529	FLANGE SEAL	0.010
