Search for Crane Part number

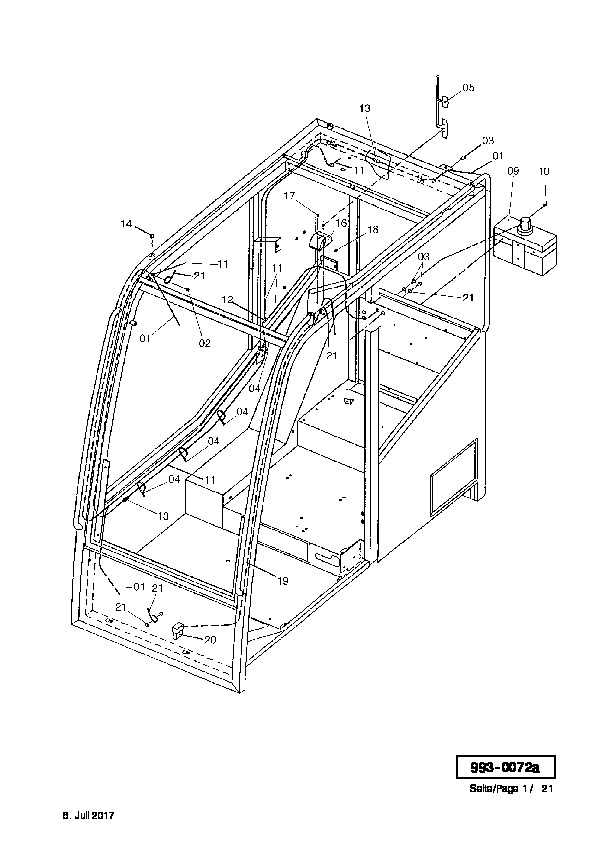

Parts for Demag AC 25, Figure 993-0072A:
Part Number 50737599: BULB 24/10W
Pos nr Part number Description
- 55127640 EXTERIOR MIRROR
- 50737599 BULB 24/10W
- 99607973 PUMP, WATER
- 61650040 CABINSEE PAGE 993-0072A, ETC.
1 42187412 HARNESS CABIN
5 42149112 ANTENNA
8 40120440 EXTENSION
9 44069840 RESERVOIR WITH PUMP
11 44031312 SPRINKLER HOSE
12 44031212 CONNECTION
13 44030112 VALVE
16 97806573 PARKING LIGHT
17 45036212 SCREW
18 40086512 BULB
19 42187512 LINE FOR PARKING LIGHT
20 42187612 MULTI PLUG
21 32689440 CABLE STRAP
31 45035312 INSULATION
32 45035712 INSULATION SIDE PLATE
33 45035512 INSULATION SIDE PLATE
34 45035412 INSULATION
43 11577812 BLIND RIVET
44 45037612 COVER PLATE
45 11579012 TABING SCREW
46 42187712 SILI
47 40085812 TABING SCREW
48 45037712 FLAP
51 44008712 WASHER
52 44037912 SCREW
53 45037812 COVER SIDE-PLATE
54 11579112 SCREW
55 42087812 AIR NOZZIE ASSY.
56 45037912 PLATE
57 42091212 AIR NOZZIE
58 44025612 DISK
59 40086012 SCREW
60 45035612 FOAMCOVER
61 11578812 SUN VISOR EF76257073
62 42188112 SCREW
63 42188212 FOAM ADHESIVE
71 44016412 SLIDING DOOR MOUNTED
74 42014012 SLIDING WINDOW ASSY.
75 44029112 SHOE FOR SLIDING WINDOW
77 34050599 WASHER
78 42064412 DOOR LOCK
79 41145812 SCREW
80 42032512 DOOR HANDLE OUTER LH.
81 44025312 BASE OF HANDLE
82 40096712 FLLISTER-HEAD SCREW
83 45037212 ACTUATING LEVER
84 40096112 LOCK NUT
85 40086312 ELASTIC WASHER
86 42032412 DRAW BAR
87 40095612 CLAMPING RING
88 40097212 NUT
89 44015612 DRAW BAR EF 45037312
90 44041312 CLAMPING RING
91 42024312 CRADLE ASSY.
92 42056912 KNUCKIE, CRADIE WELDED
93 42163312 CRADLE WELDED
94 44021012 BUSHING
95 42163212 RIVET FOR CRADLE
96 42163112 BEARING
97 44042312 SCREW
99 42188312 PLATE
100 42188412 SCREW
101 44009112 GUIDE, UPPER DOOR
102 45037412 GUIDE FOR DOOR
103 44016512 CRADLE TOP WELDMENT
104 44042412 PIN
105 45037512 PLASTIC PLATE
107 44011212 WASHER
108 11578912 DOOR PLATE
110 44011112 HANDLE
112 44011312 SCREW
113 40096312 BUTTON
114 42188612 SCREW
116 41065212 MIRROR HOLDER
117 40097412 SCREW
118 42133512 PROFILE
119 42132912 PROFILED JOINT ED 42431312
120 44012012 GUIDER ROLLER
121 44012112 ROLLER FOR CRADLE
123 42188712 WASHER
124 42188812 STOP
125 42188912 SCREW
126 42025212 HANDLE
127 44012912 CLIP
128 44009312 REAR GUIDE DOOR LOWER EF 41245512
129 44032112 KNUCKIE, CRADIE WELDED
130 44092212 RETAINER
131 44040712 BUSHING RETURN SPRING ASSY.
132 30462412 DOOR STOPPER, SUPERSTRUCTURE
133 44040812 BUSHING RETURN SPRING WELDED
134 11578412 SPRING
135 42189112 BOLT
136 42189212 NUT
137 44038512 PLATE
139 42189312 DOOR ACTUATOR
140 42112612 BALL HANDLE
